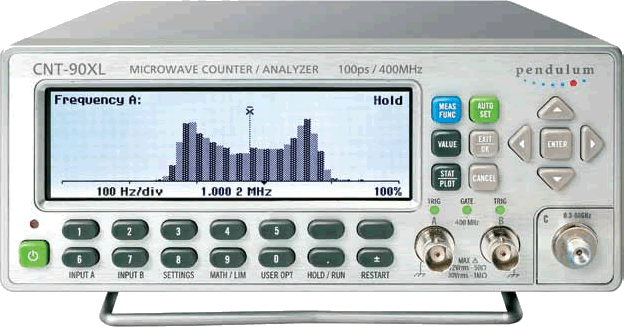

CNT-90XL Microwave Counter/Analyzer
- Graphic display of histograms, trend & modulation
- 250k measurements/s to internal memory
- Frequency or power, CW or burst to 60 GHz
- Modulation Domain Analysis to 60 GHz
- mHz resolution on GHz signals
- Frequency or power stability, settling or drift
- USB & GPIB as standard
Ultimate Tool for Measurement, Analysis and Calibration
The CNT-90XL is the ultimate tool for measurement and statistical analysis of microwave frequency and power. In test systems, on the R& D bench, in the calibration lab, or in the field; the CNT-90XL outperforms all microwave frequency counters on the market today.
Fast Speed and High Resolution
Featuring the fast measurement speed of 250,000 measurements/sec of frequency or power with a short acquisition time of 25ms (auto) or zero (manual). The CNT-90XL delivers the highest resolution of any microwave counter: 12 digits resolution in a 1-second measurement period.
Advanced Statistical Analysis and Multi-mode Presentation
The graphic display shows frequency or power changes over time, directly on-screen, providing measurement and analysis of FM/AM modulation, power and frequency changes, VCO settling, post-tuning drift, and more. Built-in statistical processing presents on screen display of frequency/power distribution, frequency/power stability, or modulation; in numeric, trend-line, or histogram formats.
Power steps from a generator (-30 to -5 dBm, in 5 dBm steps). Note the output is turned off between power steps; not something a power meter nor a spectrum analyzer would catch
With TimeView, Modulation Domain Analyzer software (optional), the CNT-90XL can provide a more robust statistical capability, post-processing collected data for in-depth analysis. Multi-functional Frequency Counter with Power Meter
For More Detailed Specifications about this Product Please Navigate to Pendulum Official Website or simply Click Here
| Desctiption | Size |
|---|---|
| Pendulum CNT - 90XL Data Sheet | 494Kb |
- Parent Category: Pendulum Products

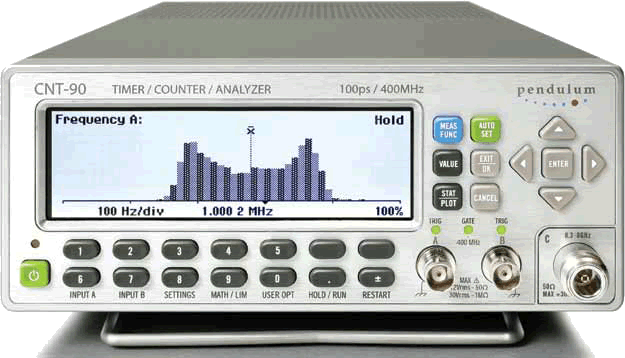

Pendulum CNT - 90 Timer/Counter/Analyzer
- 250k measurements/sec to internal memory and 2k/sec via GPIB
- High resolution: 12 digits/s (freq.), 100 ps (time), 0.001° (phase)
- 14 digits display
- Frequency range: 300 MHz standard; 3, 8, 14 and 20 GHz optional
- Multi-parameter display and graphical presentation of results
- USB and GPIB as standard
- Outstanding performance/price ratio
Fast Speed and High Resolution
The CNT-90 Frequency Timer/Counter/Analyzer is excellent for measurement, analysis and calibration of frequency, time, or phase. In production test systems, R&D, the calibration lab, or in the field; the CNT-90 timer/counter/analyzer outperforms many existing counters on the market. The CNT-90 offers ease-of-use, a multi-mode graphic/numeric display, and improved control over measurements, at a very competitive price.
The CNT-90 features fast measurement speed of 250k measurements/sec with a memory depth of 750k to internal memory; high resolution of 100 ps single shot (time); and 12 digits/sec resolution (frequency).
Graphic Display and Multi-mode Presentation
The CNT-90 is a frequency counter with graphic presentation of results including histograms, trend lines, and modulation; that provide an understanding of random signal distribution and measurement changes vs. time, from slow drift, to fast jitter and modulation. Complete statistical analysis including mean, min., max. p-p, standard deviation, and Allan deviation are viewable in both graphic and numeric format.
With TimeView, Modulation Domain Analyzer software (optional), the CNT-90 statistical processing is more powerful and provides expanded analysis capabilities.
Zero Dead-Time
Unlike standard gated frequency counters, the CNT-90’s continuous time-stamping of events enables capture of all individual periods, back-to-back without dead-time, measuring every complete event cycle without event interpolation errors. This process allows for a least-squares linear regression of multiple measurements, adding 3 or more digits to the measurement resolution.
Microwave Frequency Range and Time Base
The CNT-90 features a frequency range of 300 MHz standard with options to 3, 8, 14 and 20 GHz. Two OCXO options are available: one with very high stability (0.01ppm/month), and one with an ultra-high stability (0.003ppm/month).
GPIB/USB Increased Throughput and Efficiency
For PC connectivity, USB and GPIB (IEEE 488.2) interfaces are standard with the CNT-90. The GPIB interface is SCPI/1999 compliant and includes a switchable HP53131A emulation mode, for easy inclusion in test systems designed for older model counters, eliminating the need to re-program system commands developed for the 53131A, when replacing these older counters with the modern CNT-90.
With a fast bus transfer speed of 2k measurement results/sec. (GPIB or USB), the CNT-90 saves test system time by increasing throughput up to 90%.
For More Detailed Specifications about this Product Please Navigate to Pendulum Official Website or simply Click Here
| Desctiption | Size |
|---|---|
| Pendulum CNT - 90 Data Sheet | 551Kb |
- Parent Category: Pendulum Products
CNT-81 Timer/Counter/Analyzer
Rubidium Frequency Standard
- 8000 measurements/sec
- High resolution: 1ps (time) 11 digits/s (freq.), 0.001 (phase)
- Rubidium stability: 0.0001 ppm
- High trigger resolution: 1.25 mV
- Advanced arming/hold-off
- Modulation Domain Analysis SW
- EMC-immunity for noisy environments
- 8 GHz option for microwave & RF testing
- Ideal for fast test systems, R&D and calibration laboratoires
CNT81 and CNT-81R Timer/Counter/Analyzers
Pendulum Instruments offers a choice of two high-performance timer/counter models; the fast/high-resolution CNT-81 and the CNT-81R with built-in Rubidium time base, which allows frequency calibration of the highest possible specified oven oscillators. The counters are equipped with GPIB-interface as standard, for use in automatic test systems, or in PC-controlled instrument clusters on the lab bench or workshop bench. The standard frequency range of 225/300 MHz can be extended to 2.7 GHz. With the new 8 GHz prescaler input option, the frequency measuring range is extended into 8 GHz. Optional timebase oscillators extend the timebase stability to 0.02 ppm/year. The CNT-81R has a built-in atomic clock standard (Rubidium).
Suitable for Test Systems
The high-performance timer/counters are capable of handling virtually all measurements of frequency, time interval or phase. They include an internal storage of up to 6k values. Measurement speed to internal memory is up to 40k readings/s (8k/s with full resolution). The CNT-80-family of counters has excellent immunity to EMI, which makes them suited for all types of test systems. In the calibration lab they can calibrate time, phase and frequency with ultimate accuracy, speed and resolution.
The CNT-81/CNT-81R are also valuable tools for the R&D engineer, featuring almost every po built-in mathematical and statistical processing, very advanced arming and hold-off functions, modulation domain analysis and much more.
For More Detailed Specifications about this Product Please Navigate to Pendulum Official Website or simply Click Here
| Desctiption | Size |
|---|---|
| Pendulum CNT - 81 & 81R Data Sheet | 2826Kb |
- Parent Category: Pendulum Products

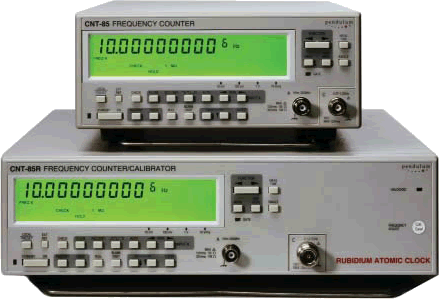

CNT-85 Frequency Counter/Calibrator
- Resolution: 10 digits in 1s
- Low uncertainty: 0.0001 ppm (Rb)
- Short warm-up time: 10 min. to 4x10-10
- Smart input trigger system
- Measures any type of input signal, incl. bursts, AM, FM and noisy signals
- Displays also input signal strength
- Excellent EMC-immunity
- Easy to use
- Ideal for on-site frequency calibration of the master clock in GSM base stations
CNT85/85R Frequency Counters
The CNT85/85R is two high-performance frequency counter models for every need and budget. Choose from the basic 300 MHz frequency counter CNT-85 or the ultimate portable frequency calibrator CNT-85R with built-in Rubidium time base.
Both counters can be equipped with optional HF-inputs to 2.7 GHz and a GPIB-interface, for use in automatic test systems, or in PC-controlled instrument clusters on the lab bench or workshop bench. A new option - the 8 GHz Prescaler input - extends the frequency measuring range.
Easy to Use
The CNT-85 is a compact portable high-performance frequency counter ideal for portable frequency calibration. It is very easy to use, thanks to an advanced and intelligent Auto Set function, which ensures perfect triggering on any type of input signal. Compared with other frequency counters, the CNT-85 has a lot extra to offer, like an input signal level meter (analog bar graph), pulse width and duty cycle measurements.
The CNT-85R is an excellent portable calibrator for calibration of the master clock in GSM base stations. Its built-in atomic clock never needs to be adjusted during the lifetime of the network.
For More Detailed Specifications about this Product Please Navigate to Pendulum Official Website or simply Click Here
| Desctiption | Size |
|---|---|
| Pendulum CNT - 85 & 85R Data Sheet | 184Kb |
- Parent Category: Pendulum Products

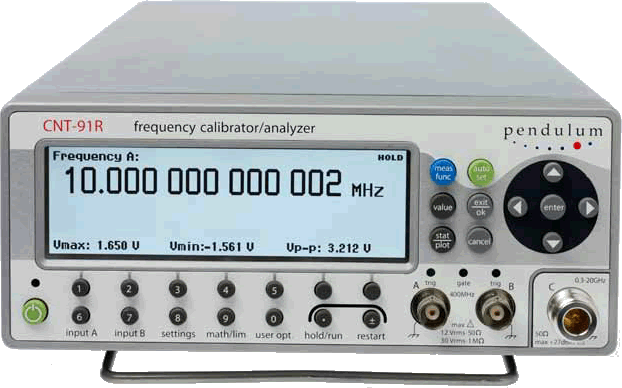

CNT-91 Timer/Counter/Analyzer
CNT-91R Timer/Counter/Analyzer & Rubidium Frequency Standard
• Continuous Data Streaming over the bus during, not after, measuring
• Zero-dead-time frequency/period measurements
• Fast GPIB/USB bus speed; 4k meas/sec in talker only mode 15k meas/sec in block mode
• High resolution 50 ps-time; 12 digits/sec-frequency
• Graphic display; numerical statistics, histogram, trend & modulation domain
• 250k meas/sec to internal memory 3.75M stored measurement results
• Programmable Pulse Output from 0.5 Hz to 50 MHz
• Integrated Rubidium atomic clock (model CNT-91R)
CNT91 and CNT-91R Timer/Counter/Analyzers
The Pendulum CNT-91 zero-dead-time counter features continuous data streaming
of measurements over GPIB/USB during, not after, measuring; creating a dynamic
measurement/analysis system, a first in the counter industry! The CNT-91 is a unique
frequency analyzer, outperforming any universal timer/counter.
For More Detailed Specifications about this Product Please Navigate to Spectracom Official Website or simply Click Here
| Desctiption | Size |
|---|---|
| Pendulum CNT - 91 & 91R Data Sheet | 472Kb |
