Parent Category: Aeroflex Products

• Frequency Range:400kHz-1.05GHz

• Low phase noise signal generator
• High stability reference oscillator (OCXO) as standard
• Accurate power measurement 2μV to 150 W
• Transient and harmonic analysis
• Fast response high resolution bar charts for peaking and nulling
• Tracking generator with full offset tracking
• Full span spectrum analyzer with ‘live’ look and listen

Parent Category: Aeroflex Products

The 3500A is the industry's first 1GHz hand-held radio test set. At less than 8 lbs., and packaged in a NEW cast magnesium alloy case, the Aeroflex 3500A is truly a rugged and portable radio test set.

3500A Features

• 2 MHz - 1 GHz operation
• P25/AM/FM transmitter and receiver tests
• Spectrum Analyzer with < -136 dBm noise floor
• Audio Frequency Oscilloscope
• Antenna/Cable tests
• Weight less than 8 lbs.
• 5 hour battery life with continuous use
• -20° to +50° C operating temperature range
• Rugged construction (specifications for humidity, altitude, shock, and vibration, MIL RF 28800F Class II Certified)

A Radio Test Set that can be used anywhere
Featuring full radio test set features, with up to 7 hours of battery life, the Aeroflex 3500A is ready to be used anywhere. The 3500A is perfect for testing AM and FM radio transceivers, whether on a bench, installed in a vehicle, or in some remote location. It also has the power to test the cables and antennas, making it the only hand-held radio test set that can test all the components of an installed radio system.

Parent Category: Aeroflex Products

Introducing the Newest Generation PMR Test Platform

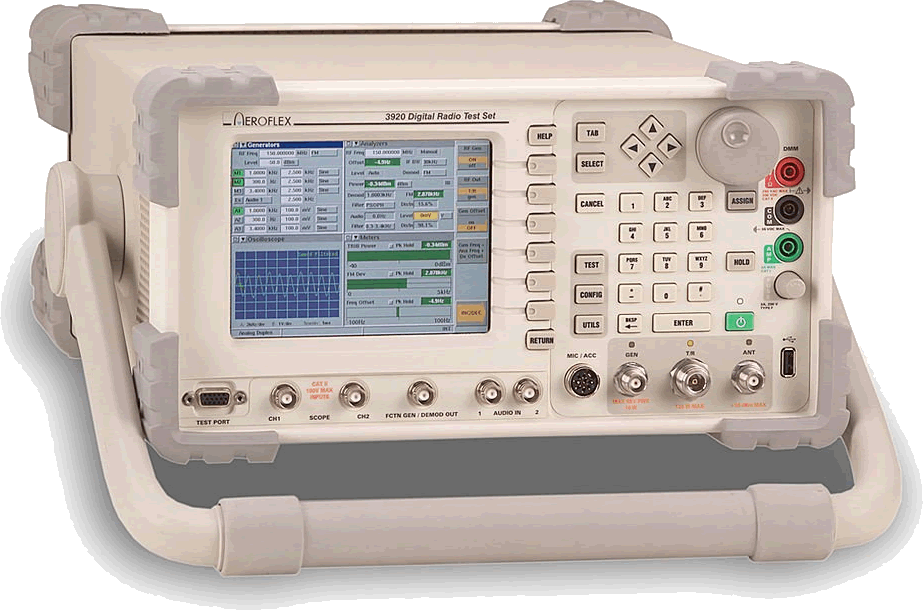

The 3920 is the latest in next generation portable test for advanced professional analog and digital radio communications. Building upon a long-standing reputation for excellence in professional radio communication test, the 3920 from Aeroflex sets a new benchmark for quality, ease of use, performance and value.

Platform:
Within the 3920 Series is a Pentium based processor coupled with a stable Linux platform provides a solid foundation for a powerful systems based test solution capable of addressing many different technologies. Three powerful digital signal processors can deliver unparalleled performance to address many different test requirements with ease. An internal 40 GB hard drive provides virtually unlimited storage for user setups, screen shots and test data. Files can be easily transferred to a USB thumb drive for external storage or processing. Setup files can be easily transferred from one instrument to another.

The platform also supports the ability to add software options to expand the measurement and signaling capabilities for communications systems that utilize advanced digital modulation and protocols.

The 3920 platform is capable of testing the following systems:

• Frequency Range: 10 MHz to 1.05 GHz (standard)
• Analog – FM, AM, AM USB, AM LSB
• P25 Conventional
• P25 Trunking
• TETRA – BS, BS T1, DM, MS, MS T1
• SmartNet™/SmartZone™ Trunking (Analog or Digital handoff)
• dPMR – Digital Private Mobile Radio
• NXDN™ - 4800/9600 baud
• DMR – Digital Mobile Radio
• HPD® - High Performance Data
• ARIB STD-T98
