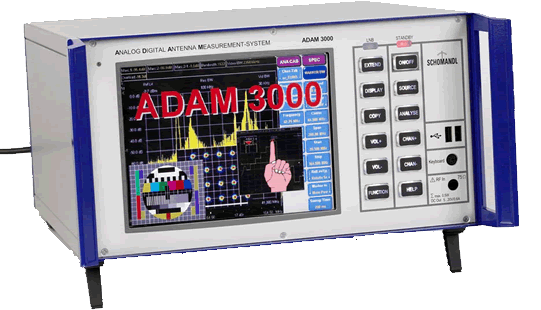

ADAM 3000

Analogue and Digital Antenna Measurement System

With ADAM 3000 Schomandl presents a measure instrument of the latest generation in compact mounting form, tabletop unit and also as black box, which leaves nothing to be desired for tests of antenna- and cable-installations, even including professional head-ends.
As a matter of course our development goes into details relating to requests for
customised instruments.
Features
• Manageable, portable or desk-measure-instrument
• High resolution 8,4” TFT – Colour display 800 x 600 pixel ( SVGA ) for analogue and digital TV-Signals and exposition graphic design
• Special backlight, thus excellently readable also in bright sunlight
( type. 600 cd/m² )
• Easy to operate using 12 hard keys and infra-red touch screen for menu navigation
• Alphanumeric keypad screen for entering text and numbers.
Functions
• MER – measurement for all digital modulation types
• BER – measurement pre and post Viterbi
• Spectrum analyser
• Simultaneous spectrum and picture analysis
• Variable start/stop frequency for spectrum analysis
• Storage oscilloscope
• Constellation analyser
• MPEG-und analogue TV-Monitor
• Demodulation of analogue signals: AM (CATV, Terr.), FM (Sat, Radio)
• Demodulation of digital signals: DVB-C, DVB-T, DVB-S
( DVB-S2 in development )
• Demodulation of digital USA-Standards (J83B, DOCSIS, ATSC)
• Video – measurement options: video amplitude with line selection, S/N measurement, hum measurement
• Oscilloscope with large result display ( zoom-in on selected signal selection )
with numerical value display
• Transmitter selection for DVB-C, DVB-S, DVB-T and analogue via frequency input, channel input and user lists
• Remote control via Ethernet, RS 232 and PCMCIA module (analogue Modem, GSM-Modem, Bluetooth, WLAN)
• Display of SID, PMT-PID, PCR-PID, CA-Info, elementary current PID and type
• Measured value detection
• Automatic measurement process
• Automatic measurement for CTB, CSO
• Return path measurements
• Measurement units: dBμV, dBmV, dBm, μV, mV
• DiSEqC™ - monitor
• Multimeter for LNB -supply
• Expansion slots (e.g. for DVB-S2)

Lieferumfang:
1 power cord, 1 fuse T 8,0 A
The soft carrying Bag has to be ordered separate BN 86902.101BF
Added for 75 Ohm Version:
- 1 measurement cable – BNC plug – BNC socket
- 1 Adaptor - 1,6/5,6 plug – BNC - socket - 1 Adaptor - BNC- socket - F- socket - 1 Adaptor - BNC- socket - F- connector - 1 Adaptor - BNC- socket - IEC- socket - 1 Adaptor - BNC- socket - IEC- plug
- 1 fuse T 8,0 A
The soft carrying Bag has to be ordered separate BN 86902.101BF
